Not to be released before Friday, October 10, 1969
ROVER'S NEW 3500 S LUXURY SEDAN POWERED BY
LIGHT WEIGHT V8 ENGINE
Sophisticated Rover Sedan offers Aluminum Engine
With Outstanding Power/Weight Ratio
The long-established Rover Company Ltd. of Solihull, England, (founded 1878) has adopted
a very modern V-8 formation engine for the new 3500 S luxury sedan. Current customer demand
is for the fitment of more and more options, and so Rover goes well into the lead among
European manufacturers offering more powerful multi-cylindered engines with which to meet
this demand.
Thus the 3500 S, now introduced by British Leyland Motors Inc., provides in standard form
a complete selection of luxury equipment normally quoted as options. These include power
steering, automatic transmission, a fully integrated heating and fresh air system, with
air conditioning optional.
Rover has approached the need for adequate power reserve to drive such units, by utilizing
a very contemporary engine design. This engine, evolved from a famous American design,
has even been successfully adapted to Grand Prix racing cars which won the World Racing
Championship.
The beautifully finished V-8 engine is arranged in two banks of four cylinders at 90-degree
angle and has overhead valves, operated through push rods and hydraulic self-adjusting
tappets.
Aluminum alloy components include all the major units such as cylinder block, cylinder
heads, rocker covers, inlet manifold, pistons, water pump, and timing cover. The engine
weighs approximately 350 lbs. the same as Rover's smaller 2000 Sedan 4-cylinder engine,
but develops 47 per cent more power.
Cast-iron dry cylinder liners are inserted into the alloy block and 3-ring aluminum pistons
drive a five lead-indium bearing crankshaft.
Carburetion is by twin 1 3/4 in. bore SU HS6 carburetor, drawing from an 18-gallon fuel tank
with 2 3/4 gallon reserve, controlled by a tap at the driver's console.
Water-cooling, with cross-flow radiator, is by belt driven pump, using a 13-blade nylon fan,
driven through a viscous coupling to limit fan speed to 2500 rpm; so the fan works only when
needed, reducing noise and power loss.
Thus, in many respects, the Rover 3500 S brings to the American customer the best of both
engineering worlds - the exclusivity of the imported specialty car, combined with proven
technical features developed specifically for American operating conditions.
Enjoying this article? Our magazine is funded through the generous support of readers like you!
To contribute to our operating budget, please click here and follow the instructions.
(Suggested contribution is twenty bucks per year. Feel free to give more!)

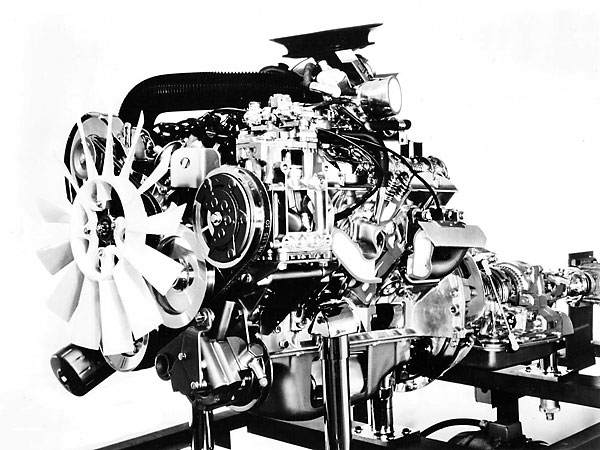

Rover's brilliant, lightweight, all aluminum V-8 power unit will be exhibited at
all major auto shows in the U.S. this fall. It will be demonstrated by this fine,
sectioned working model.

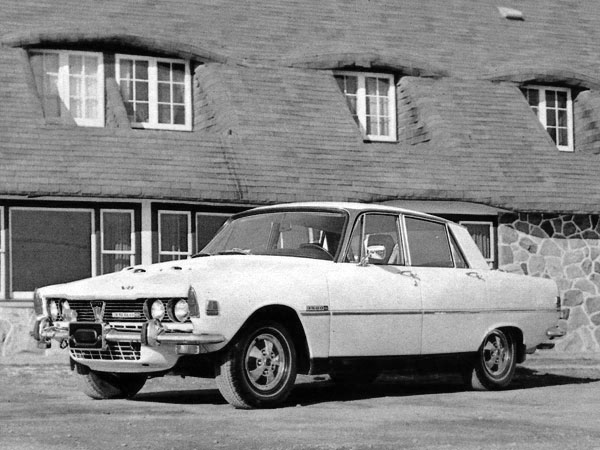

Fitted in the new 1970 Rover 3500 S sedan, the smooth, powerful V-8 is no heavier
and no longer than Rover's smaller series 2000 sedan engines, but develops 47 per
cent more power.
