Steve Wayne's widened 1961 MGA with Ford 302 V8 engine

Steve Wayne's widened 1961 MGA with Ford 302 V8 engine

as published in British V8 Magazine, Volume XVI Issue 1, May 2008

Owner: Steve Wayne
City: Collierville TN
Model: 1961 MGA
Engine: Ford 302cid V8
Conversion completed by: Steve and his son David

Engine: Ford 302, bored 0.030" over and rebuilt with 9.5:1 compression ratio hypereutectic pistons. ARP bolts. Roller rockers. Crank turned 0.010" under. Aluminum heads (2.02 intake, 1.60 exhaust). Edelbrock Performer RPM dual plane manifold. Edelbrock 650cfm carburetor. K&N air filter. Holley fuel pressure regulator with Mr Gasket fuel pressure gauge. Edelbrock Performer RPM camshaft (0.496" intake, 0.520" exhaust.) Mallory Unilite distributor. MSD Blaster 2 ignition coil. Dual oil filters.
Exhaust: Ceracoat 302 hugger headers, custom fabricated dual pipe exhaust system with small mufflers.
Cooling: custom fabricated aluminum radiator. 12" electric fan.
Transmission: Tremec 3550 5-speed. Mcleod bellhousing. 10.5" Ford SHO flywheel. RAM single plate clutch (scattershield). Custom driveshaft. Pro 5-0 shifter.
Rear Axle: Ford 9" with 3.73:1 final drive ratio. Traction-Lok limited slip differential. Moser 31-spline axles.
Suspension: (front) Mustang II, with Aldan Eagle adjustable coilover shocks.
(rear) 4-bar linkage, with Aldan Eagle coilover shocks.
Brakes: Howe master cylinders. Front disc brakes and Ford Granada drums in the rear.
Wheels/Tires: Centerline "Auto Drag" wheels. BF Goodrich tires (front P215/65/SR15, rear P295/50/R15).

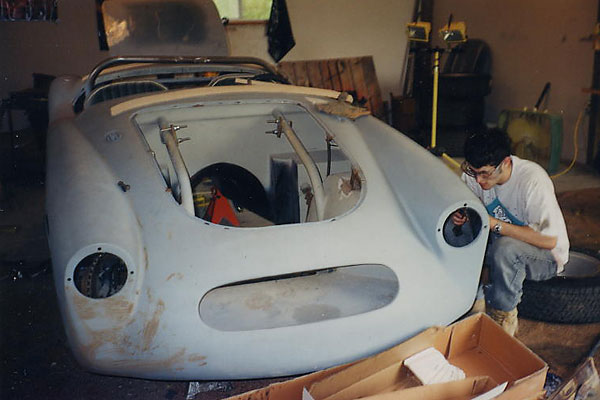

Chassis: custom-welded tubular chassis built by a stockcar company in Windsor, Ontario. The body panels were then tied into the chassis to increase strength and rigidity. Custom fabricated adjustable-height stainless steel rollbars. The body was also widened six inches and stretched a bit. Final body dimensions are similar to a Cobra. The fenders are fully welded and metal filled - no seams! Custom fabricated taillight buckets. Custom fabricated taillight lenses. Half-height Lexan windshield. Custom fabricated hood and grille by Jim Bailie of Windsor Ontario.
Paint: by Cliff McKillop, Good Stuff Paint Company, Rochester, MI.
Electrical: Summit Racing wiring harness (PRF50002). Powermaster (Delco-Remy style) 1-wire alternator. Ford style remote starter solenoid switch.
Instruments: AutoMeter Pro-Comp Ultra-Lite gauges, left to right speedometer (0-160mph), oil pressure (0-100psi), tachometer (0-10,000rpm), water temperature (100-250F), voltmeter (8-18V), and fuel level (E-F).
Interior: RJS Racing Equipment five point camlock safety harness.
Completed: 2002 (approximately 3000 miles driven as of January 2008.)
Comments: Our project was inspired by the LeMans (24 hour endurance) open cockpit race cars of the fifties and sixties.

We started with a 750cfm carburetor, and it was too large. The 650 works fine.

The original MGA steering rack was used, and is a bit tough to steer with the larger tires.

We used a Wilwood clutch slave cylinder in push mode, rather than its intended pull mode. That caused some clutch slippage after awhile.

Wide tires on rear and very short axles leads to a noisy rear end when slowly making sharp turns.

Engine cooling in Memphis' summer heat is a challenge. We added a second fill cap to cooling system to eliminate trapped air in the radiator hose.

Holley "blue" fuel pump is noisy, but works well. With a 10 gallon fuel cell, we have about a ~150 mile range.

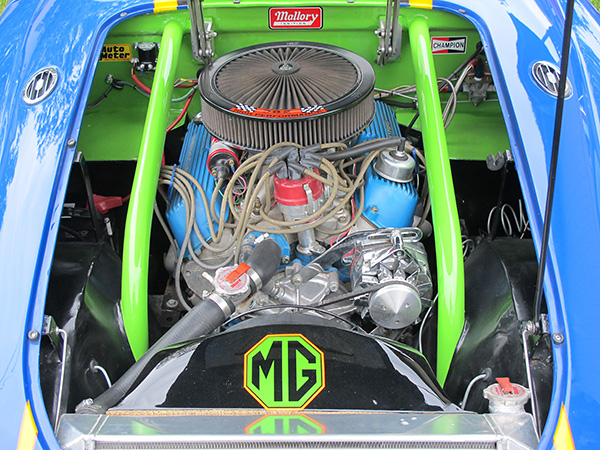

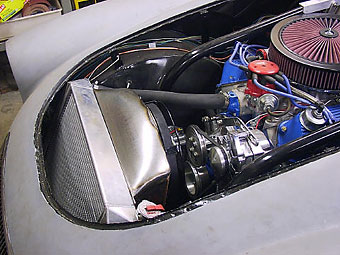

Engine Bay:

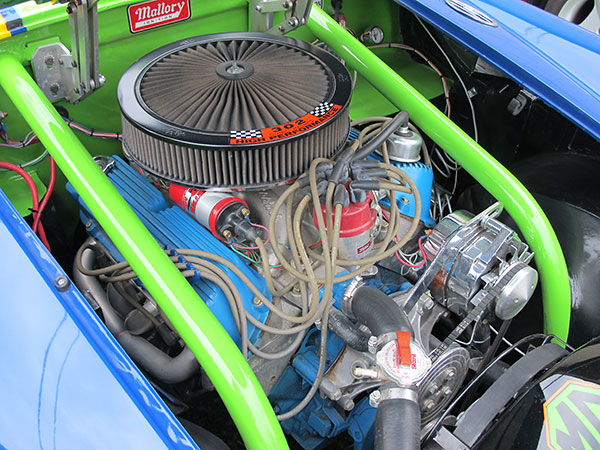

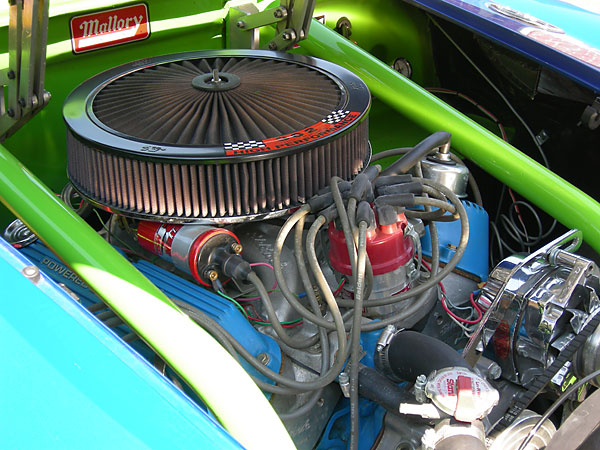

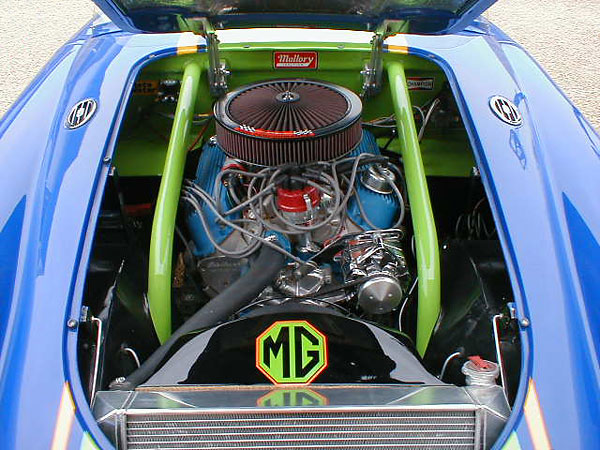

Ford 302, bored 0.030 over and rebuilt with 9.5:1 compression ratio hypereutectic pistons.
Ford 302, bored 0.030" over and rebuilt with 9.5:1 compression ratio hypereutectic pistons. (2016)

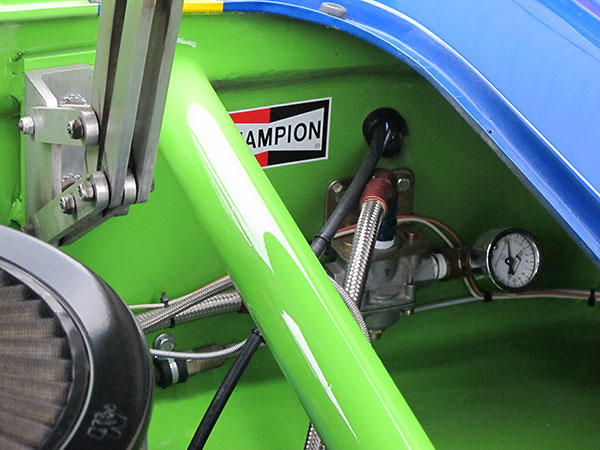

Holley fuel pressure regulator with Mr Gasket fuel pressure gauge.
Holley fuel pressure regulator with Mr Gasket fuel pressure gauge. (2016)

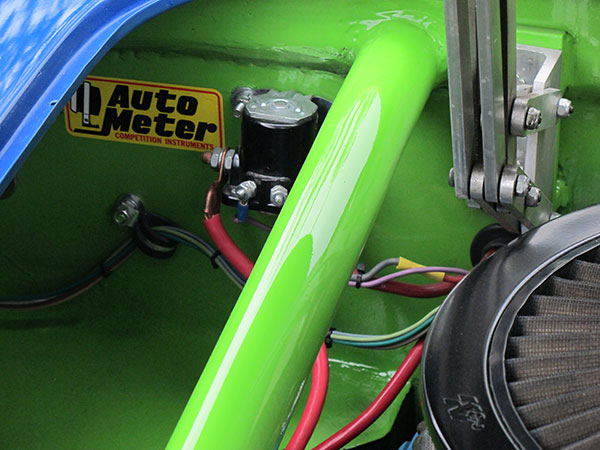

Ford style remote starter solenoid switch.
Ford style remote starter solenoid switch. (2016)

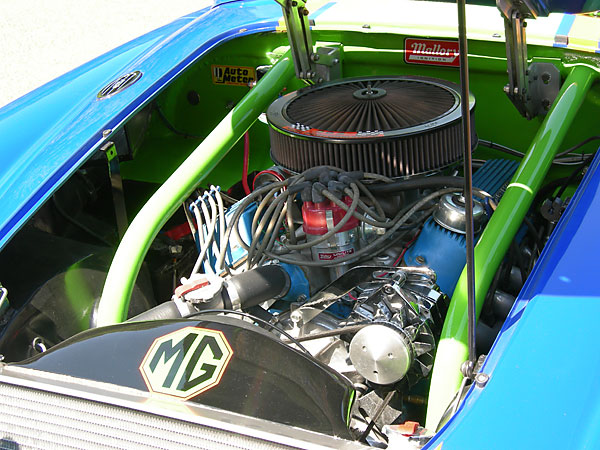

Mallory Unilite distributor. MSD Blaster 2 ignition coil.
Mallory Unilite distributor. MSD Blaster 2 ignition coil. (2016)

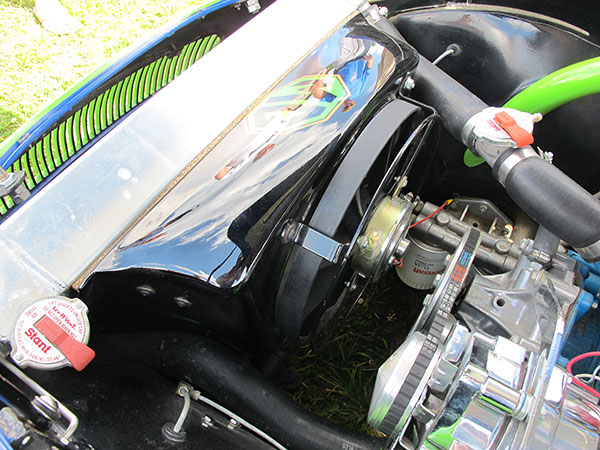

12 inch electric fan.
12" electric fan. (2016)

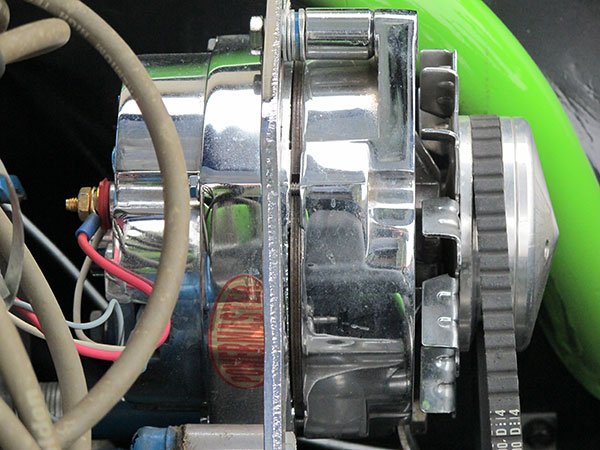

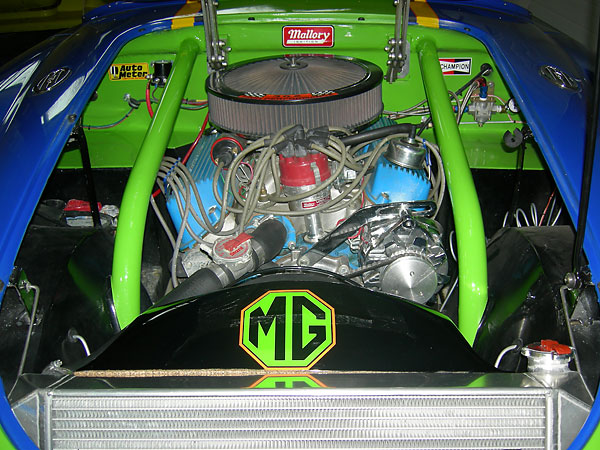

Powermaster (Delco-Remy style) 1-wire alternator.
Powermaster (Delco-Remy style) 1-wire alternator. (2016)

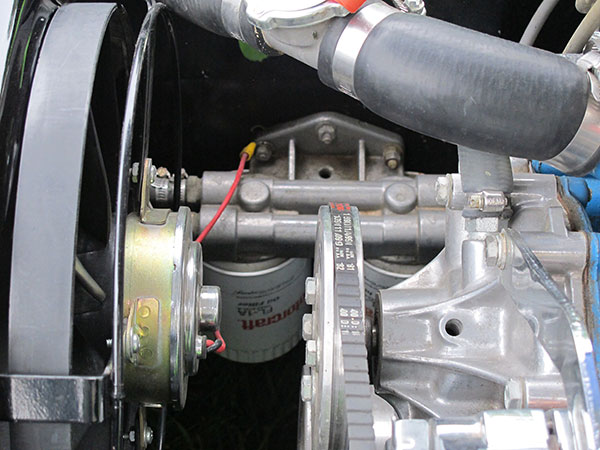

Dual oil filters.
Dual oil filters. (2016)

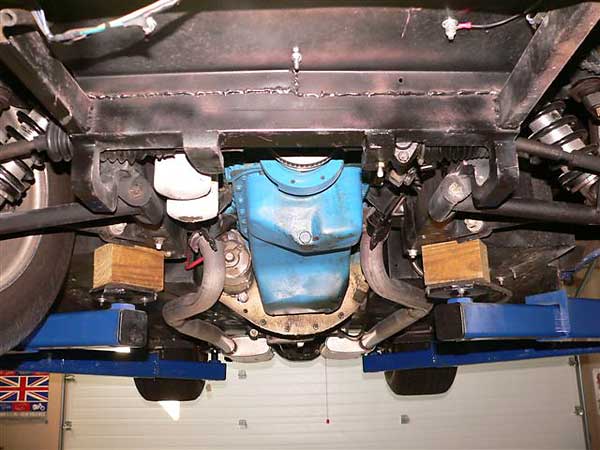

Underneath:

Ford 302 oil pan
Ford 302 (dual sump) oil pan.

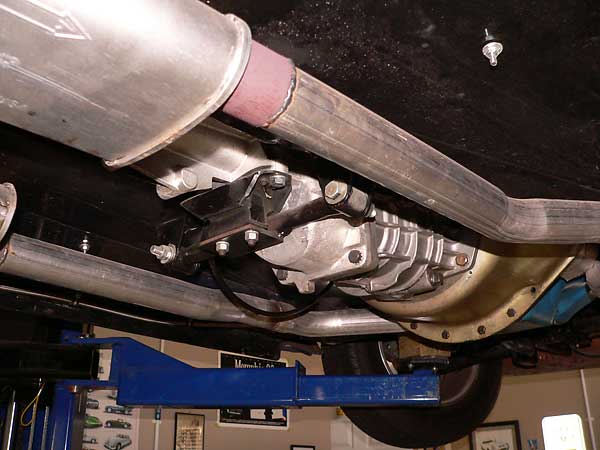

Tremec 3550 5-speed, Mcleod bellhousing
Tremec 3550 5-speed and Mcleod steel bellhousing.

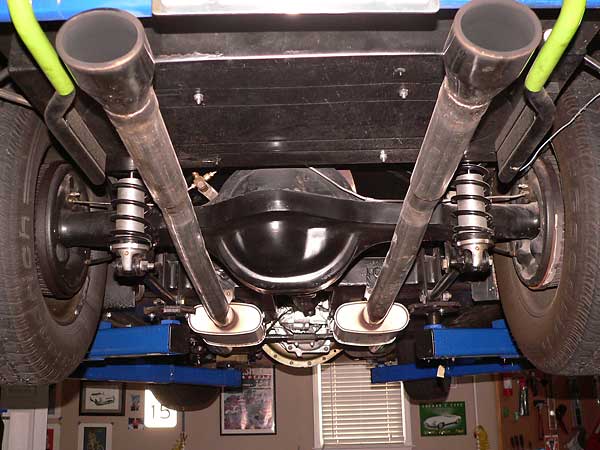

Ford nine inch, 4-link, Aldan Eagle shocks
Ford 9" rear axle with a 4-link rear suspension and Aldan Eagle coilover shock absorbers.

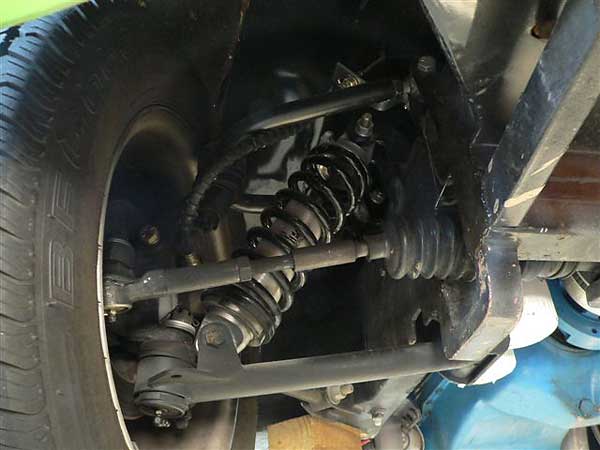

Mustang II front suspension.
Mustang II front suspension.

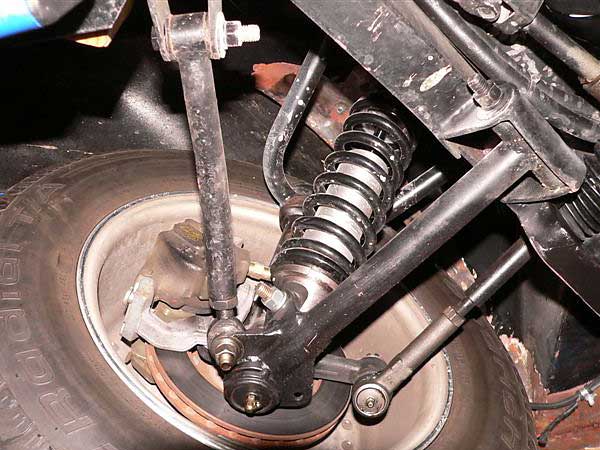

Aldan Eagle adjustable coilover shocks.
Aldan Eagle adjustable coilover shocks.

Interior:

Shifter for Tremec 5-speed.
Shifter for Tremec 5-speed.

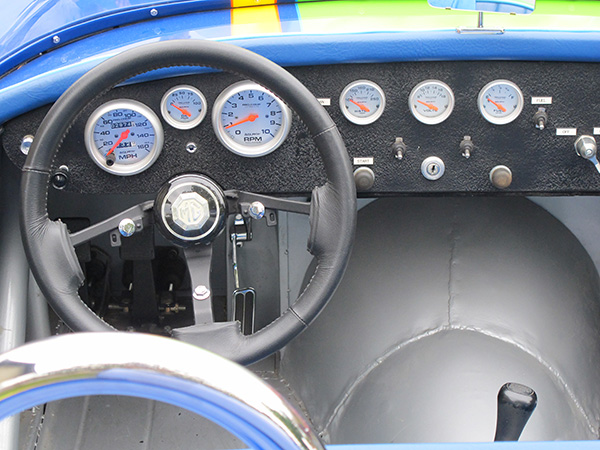

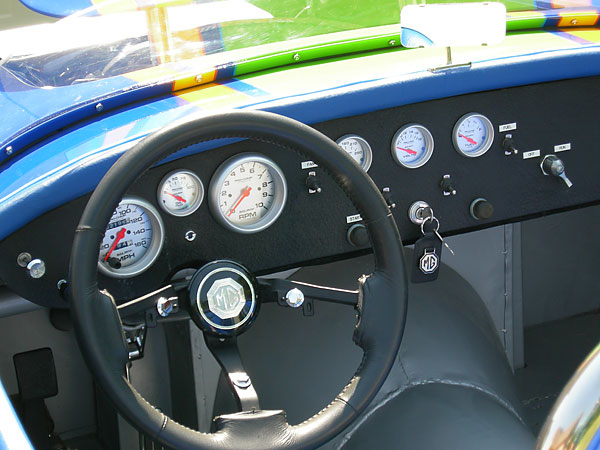

AutoMeter Pro-Comp Ultra-Lite gauges.
AutoMeter Pro-Comp Ultra-Lite gauges. (2016)

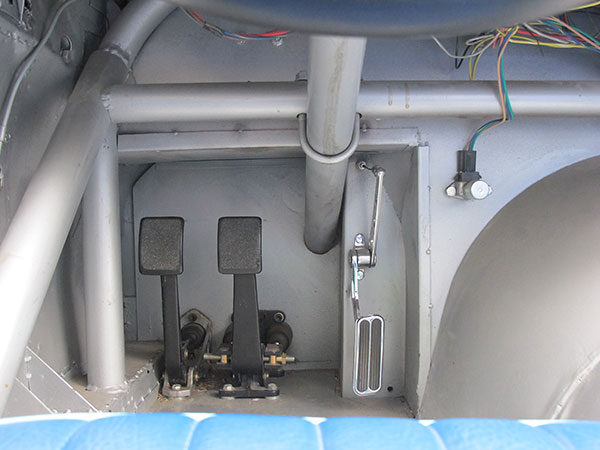

Pedals.
Pedals. (2016)

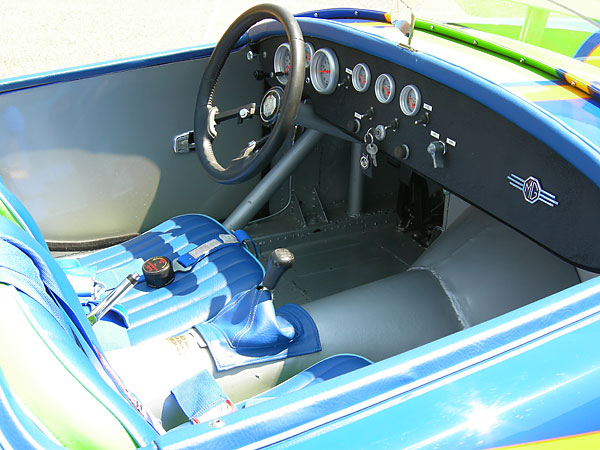

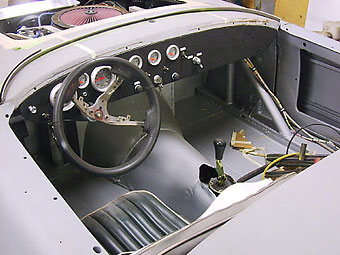

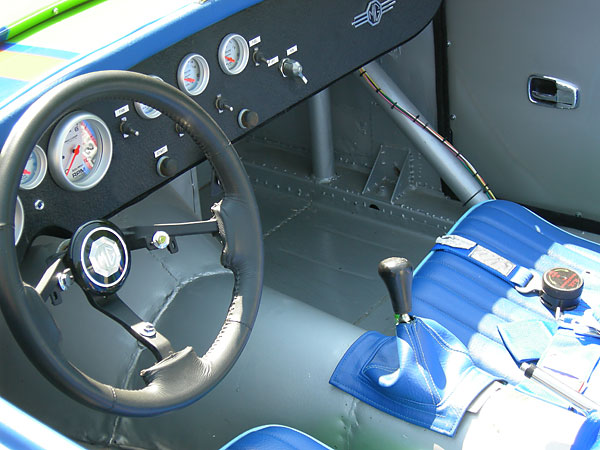

Custom racecar-style dashboard.
Custom racecar-style dashboard.

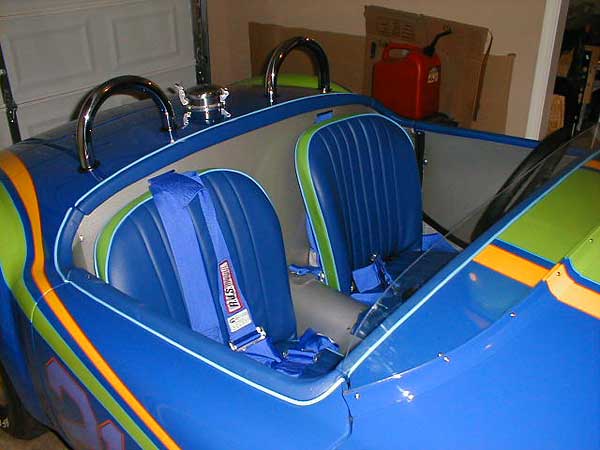

RJS Racing Equipment five point camlock safety harness.
RJS Racing Equipment five point camlock safety harness.

Exterior:

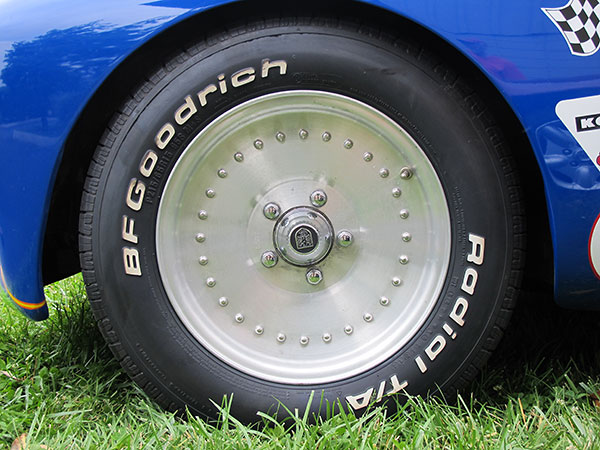

Centerline Auto Drag wheels.
Centerline Auto Drag wheels.

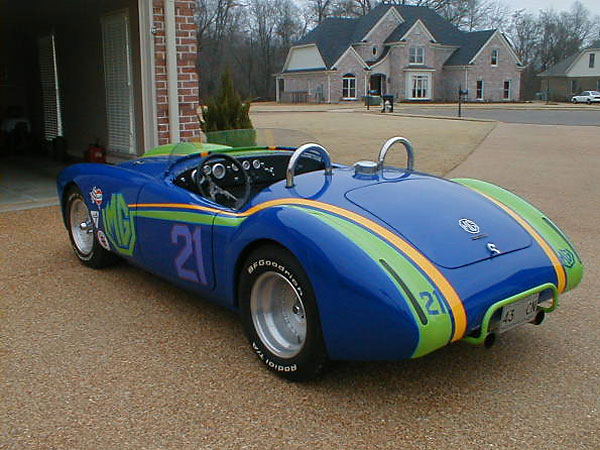

MGA with hood scoop.
MGA with hood scoop.

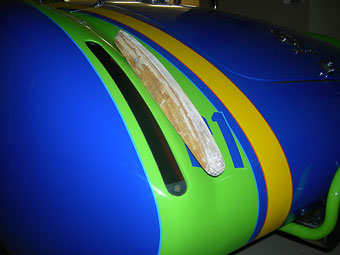

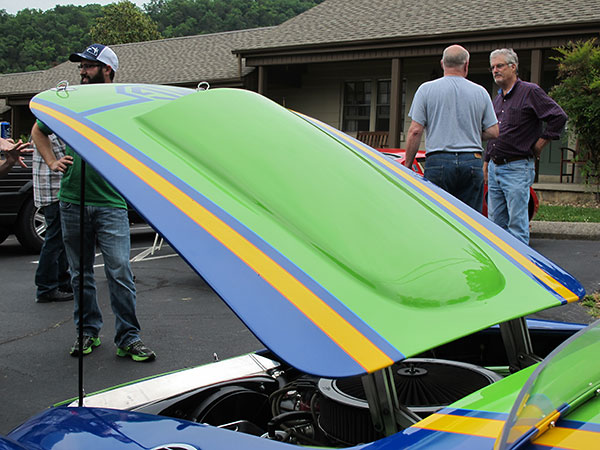

Hood scoop!
Hood scoop! (2016)

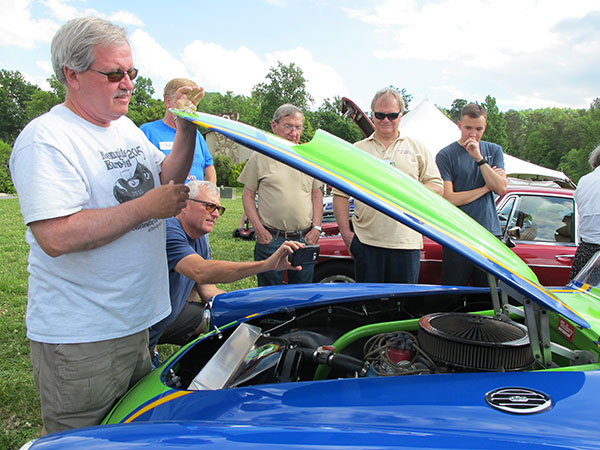

Demonstrating the bonnet hinges.
Demonstrating the bonnet hinges. (2016)

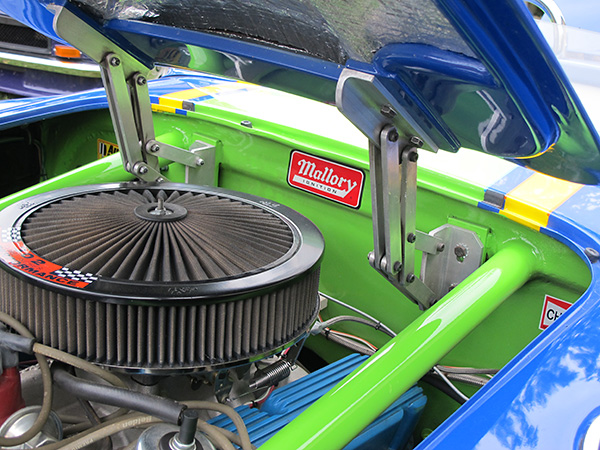

K&N air filter.
K&N air filter. (2016)

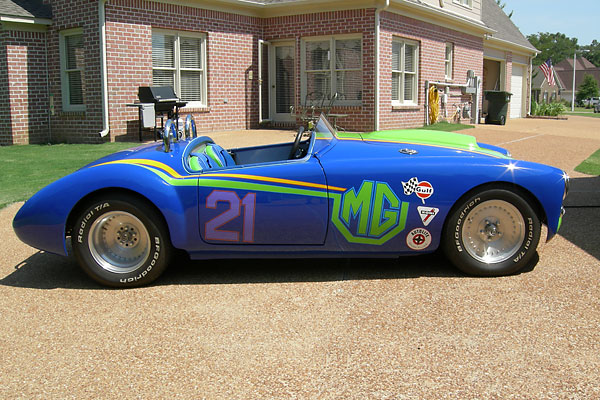

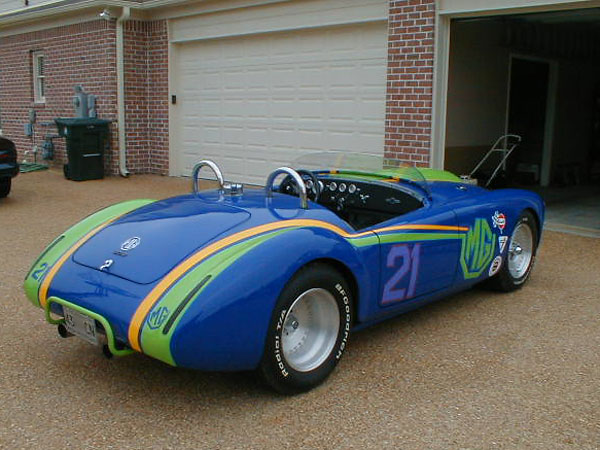

MGA with oversized rear tires.
MGA with oversized rear tires.

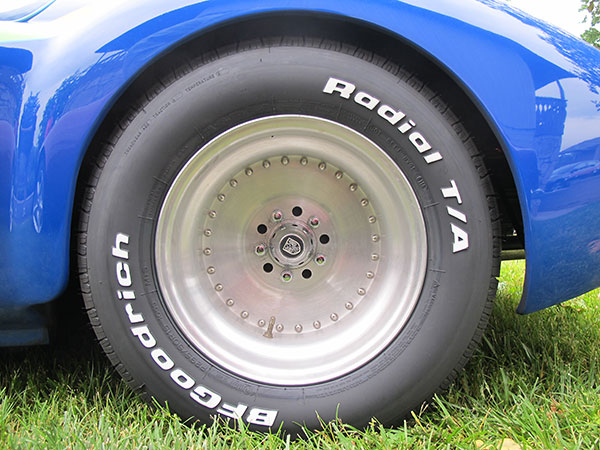

BF Goodrich Radial T/A.
BF Goodrich Radial T/A.

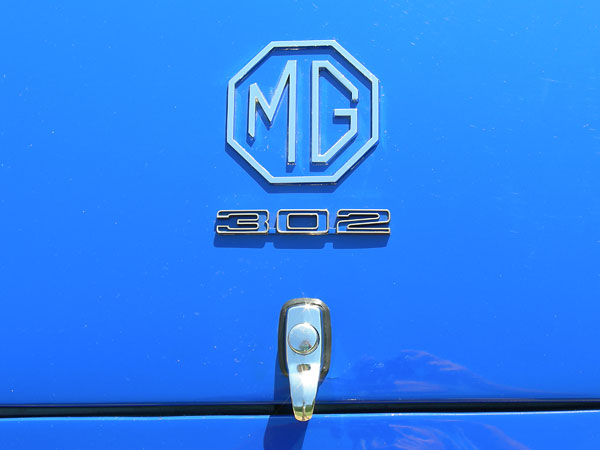

Ford 302 badge.
Ford 302 badge.

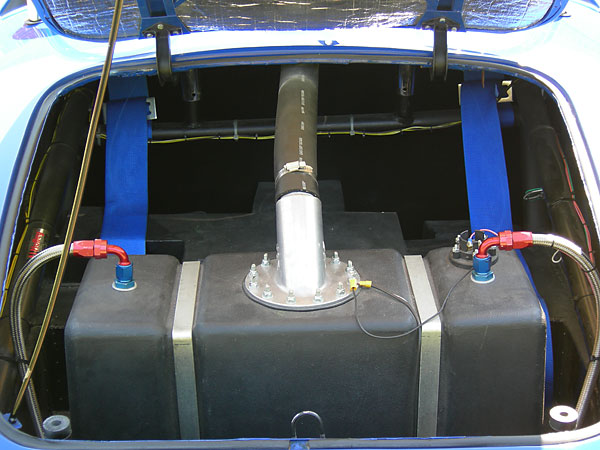

10 gallon fuel cell
10 gallon fuel cell.

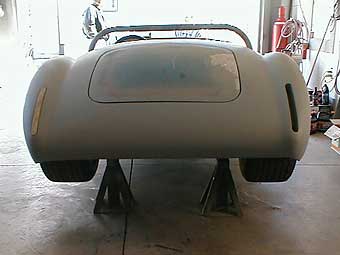

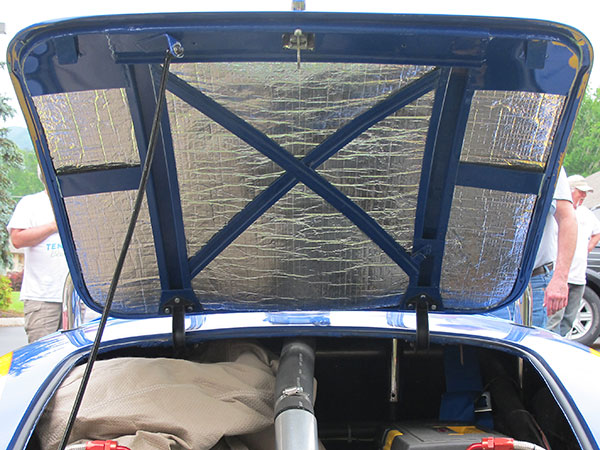

Widened boot lid.
Widened boot lid. (2016)

Centerline Auto Drag wheels.
Centerline "Auto Drag" wheels. (2016)

BF Goodrich tires (front P215/65/SR15, rear P295/50/R15).
BF Goodrich tires (front P215/65/SR15, rear P295/50/R15). (2016)

Enjoying this article? Our magazine is funded through the generous support of readers like you!
To contribute to our operating budget,  please click here and follow the instructions.
(Suggested contribution is twenty bucks per year. Feel free to give more!)

How It Was Done:

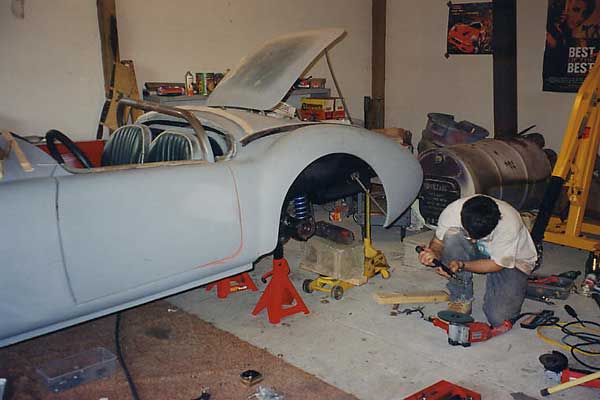

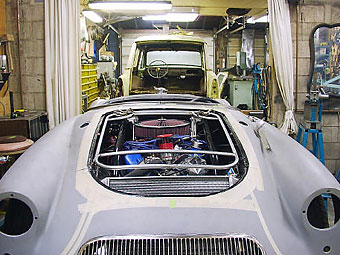

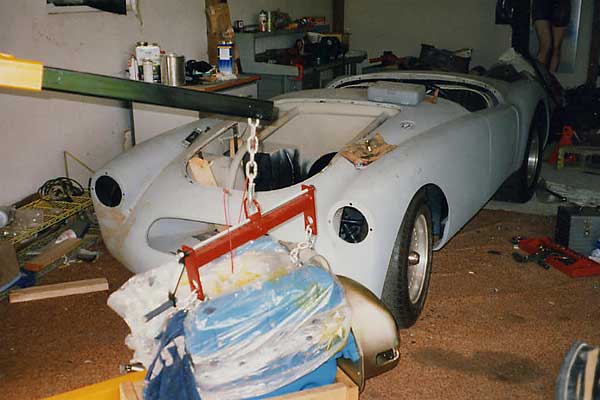

installing the engine

installing the rear brakes

installing the front brakes

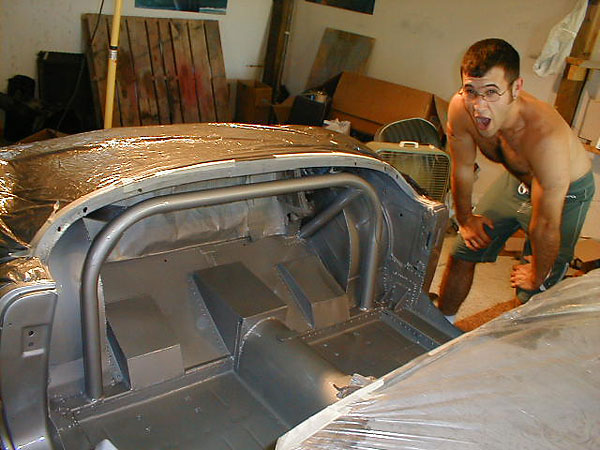

foundation of the adjustable-height roll hoop

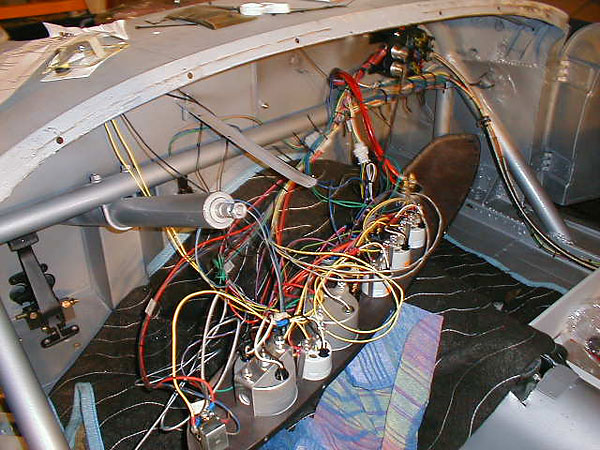

installing the dashboard (and custom wiring)

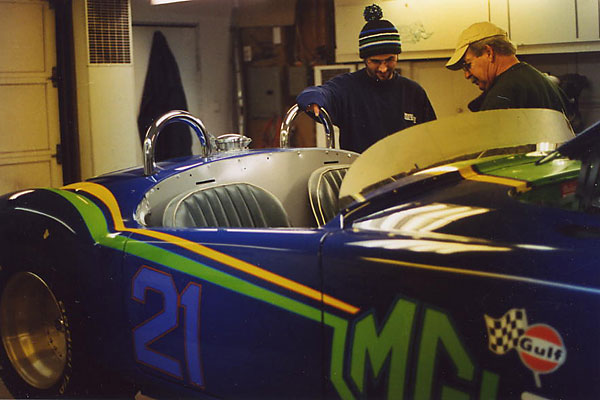

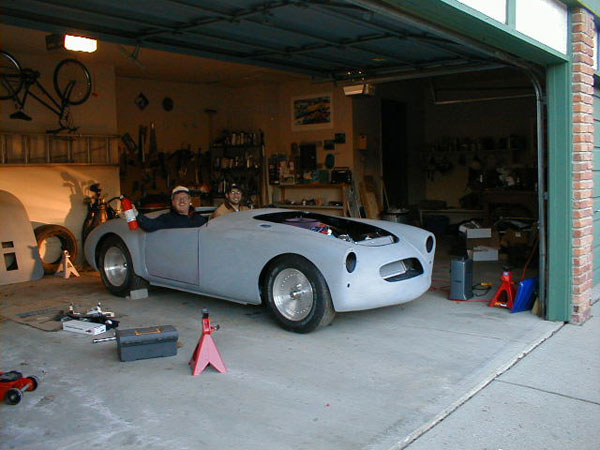

Steve and David's first test drive!
Steve and David's first test drive!

Custom Bonnet: (by Jim Bailie of Windsor Ontario)

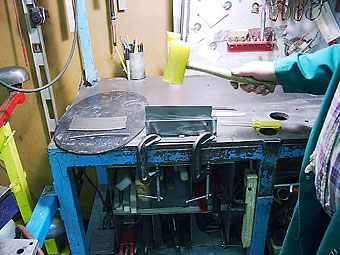

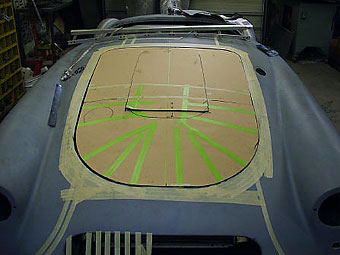

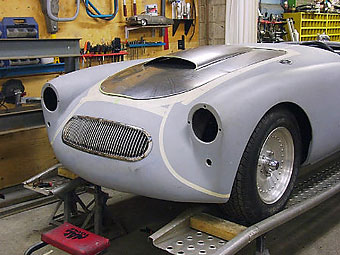

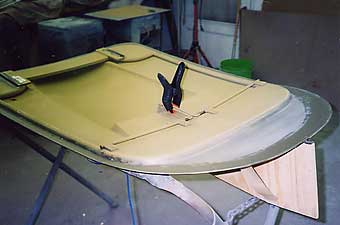

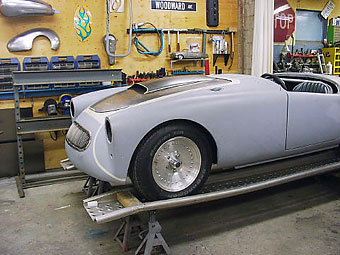

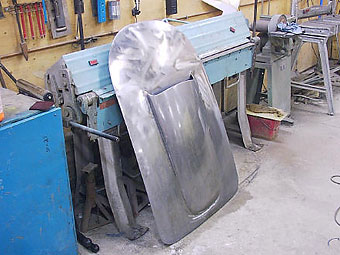

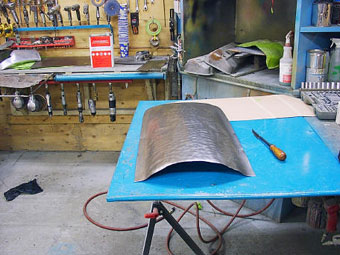

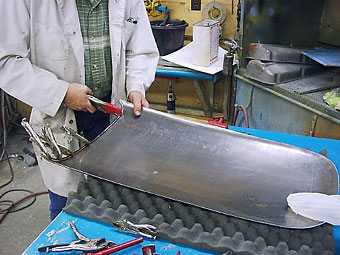

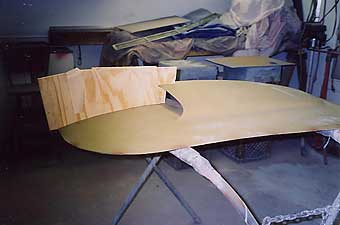

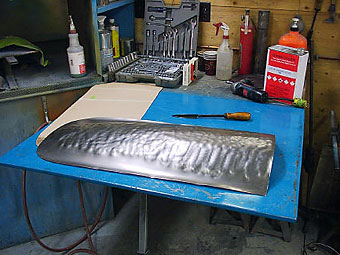

Jim Bailie's cardboard bonnet mock-up   Jim Bailie's hammer formed hood scoop

ready for refining on the English wheel   Jim Bailie, wire edging the front of the hood scoop

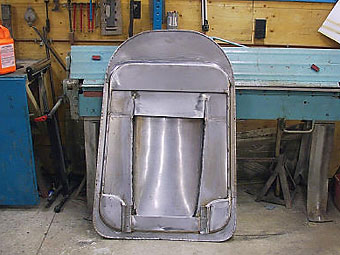

Jim Bailie's custom bonnet frame   custom bonnet hinges

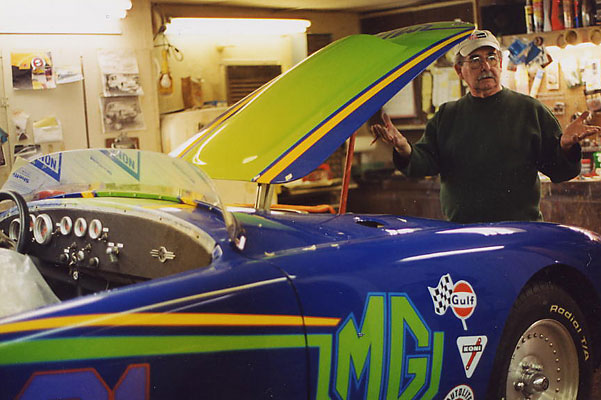

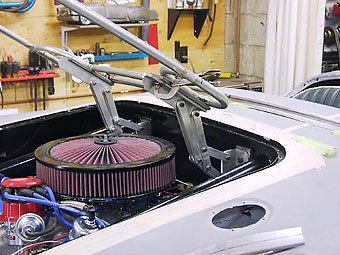

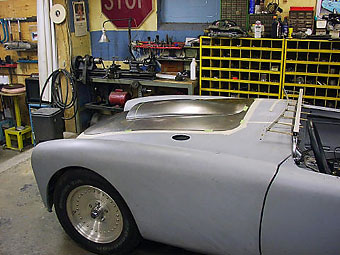

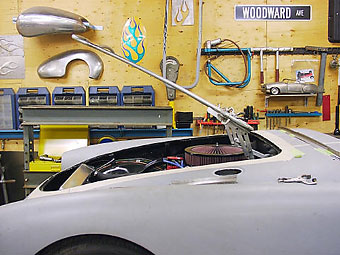

testing operation of the hood tilt mechanism   functional hood scoop, viewed from bottom

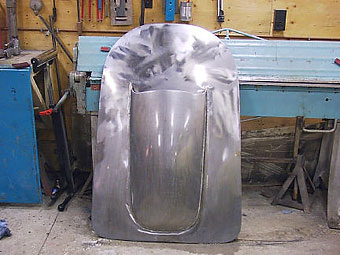

planishing marks   custom MGA hood by Jim Bailie, Professional Metalshaper

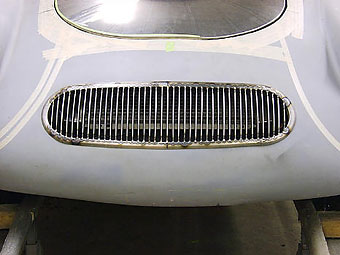

hood scoop has a 1/8 inch wire leading edge   testing hood fit on the car

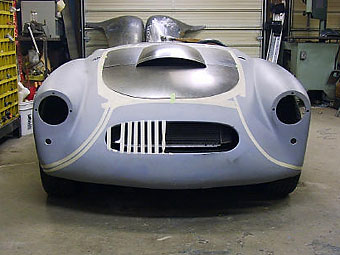

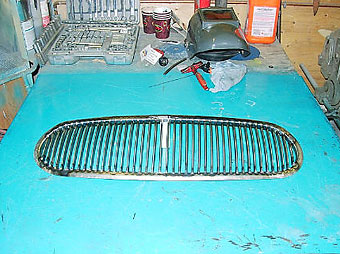

Custom Grille: (by Jim Bailie of Windsor Ontario)

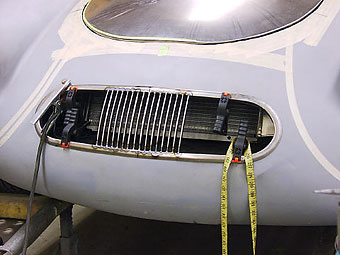

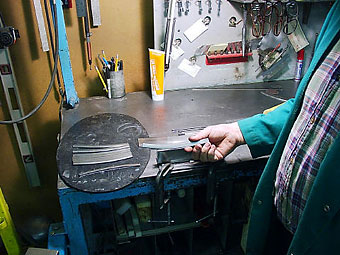

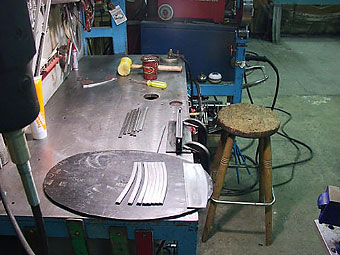

making custom grille slats   press forming grille louvers

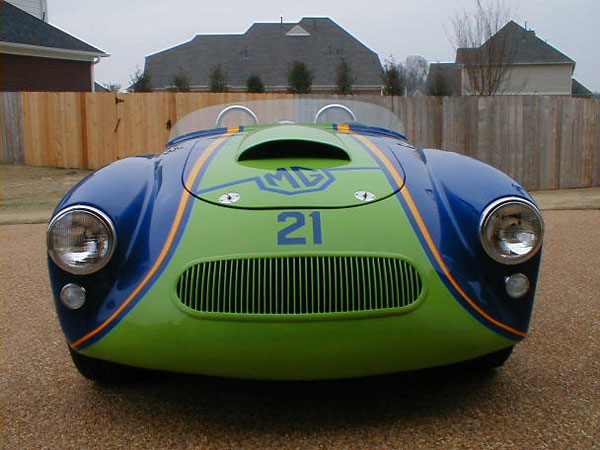

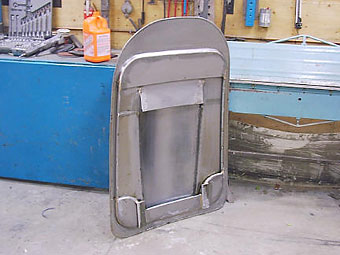

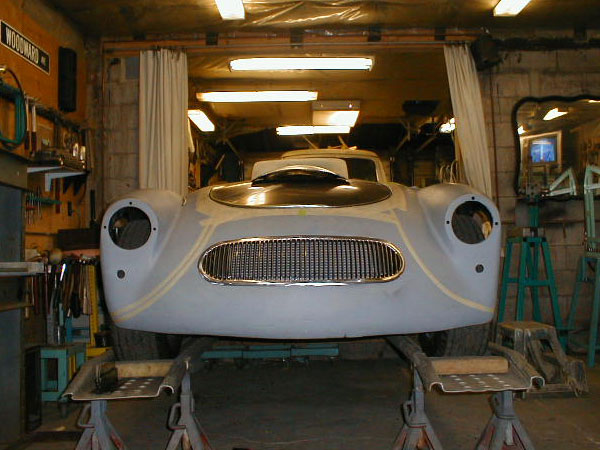

shop formed steel car grille   hand crafted custom metalshaping

custom MGA grille   custom metalsmithing

no fiberglass - no filler!   carbon-fiber is for kids... this is the old school alternative

real steel   widened grille facilitates widened radiator

wide ride

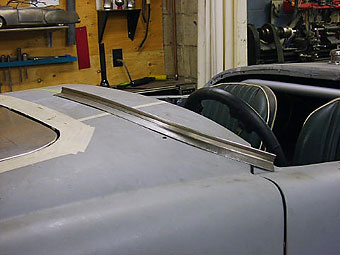

Custom Windscreen Fairing: (by Jim Bailie of Windsor Ontario)

custom formed windscreen fairing   custom windscreen fairing by Jim Bailie of Windsor Ontario

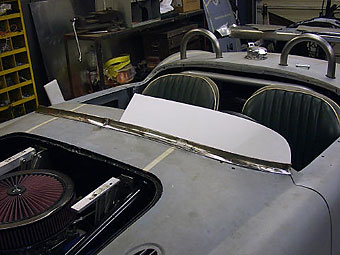

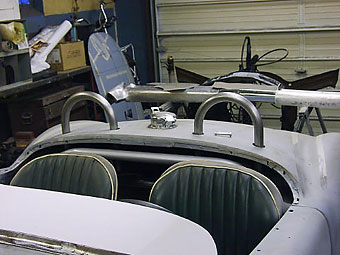

custom dashboard   dual roll hoops / LeMans fuel filler

Custom Paint: (designed and applied by Cliff McKillop, Good Stuff Paint Company, Rochester MI)

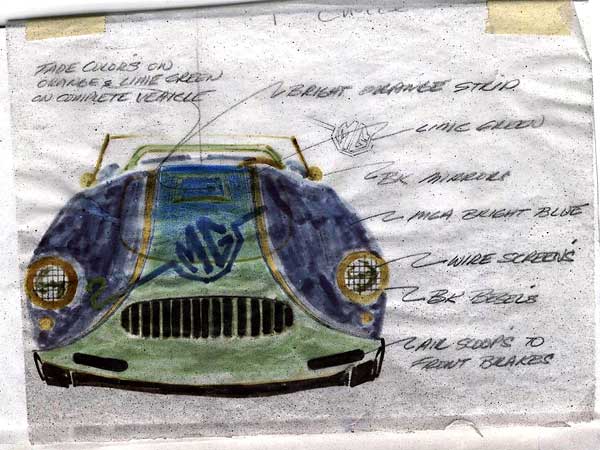

Cliff McKillop's paint scheme concept drawing
Cliff McKillop's concept drawing for the MGA's paint scheme...

MG / Lola LeMans 24 hour endurance race car paint scheme
... was designed to echo the paint scheme of the MG / Lola race car
developed for the 2001 Le Mans 24-hour endurance race.

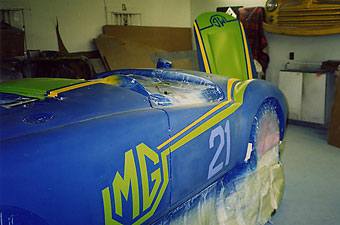

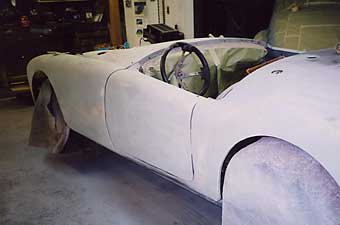

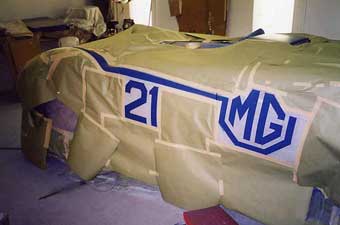

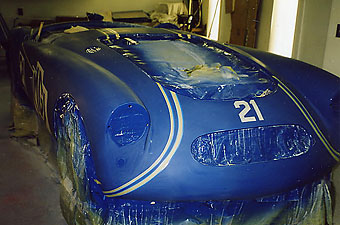

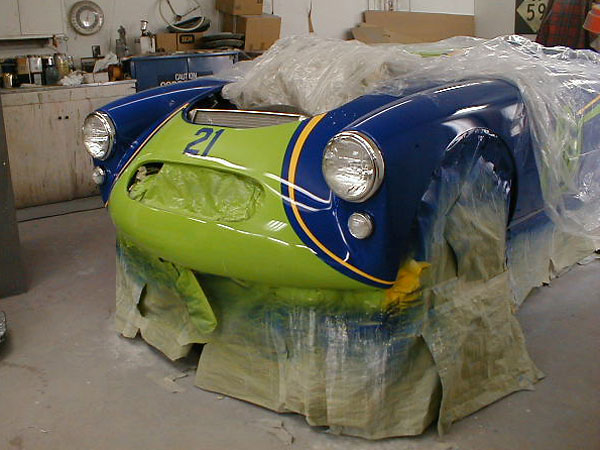

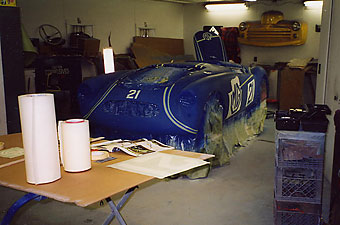

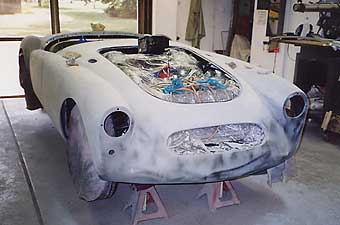

masking for paint   masking the engine compartment

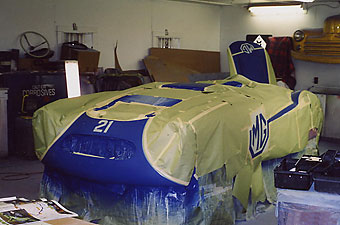

masking for racing stripes   masking for graphics

masking   masking tape

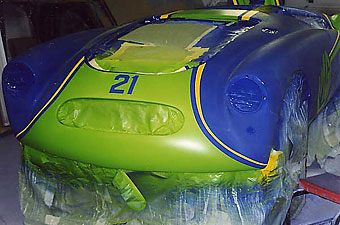

applying green paint   applying yellow paint

basecoat... in three colors

paint masking

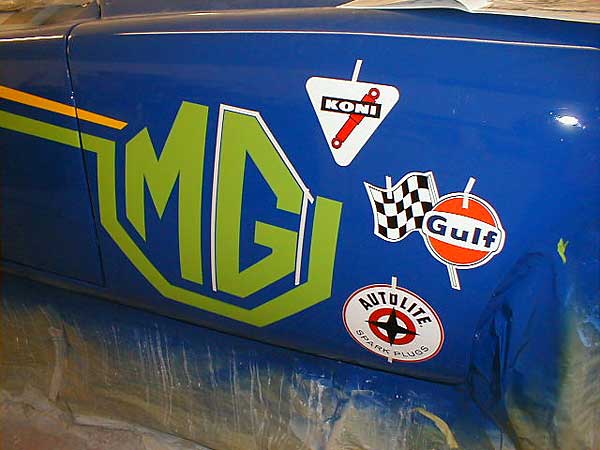

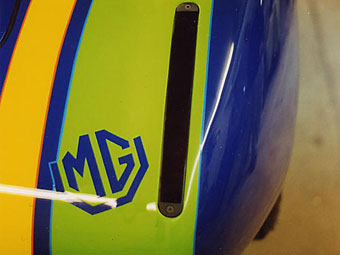

planning vintage racecar decal placement

Cliff McKillop of Good Stuff Paint Company, Rochester MI

David Wayne and Cliff McKillop pose with the polycarbonate windscreen

custom aluminum interior panels

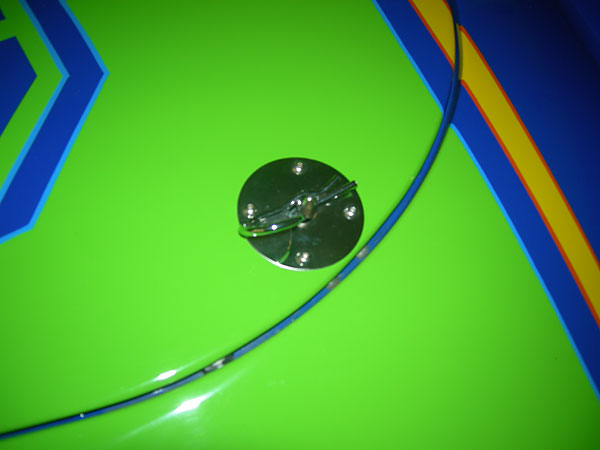

hood pins


Custom Tail Lights:

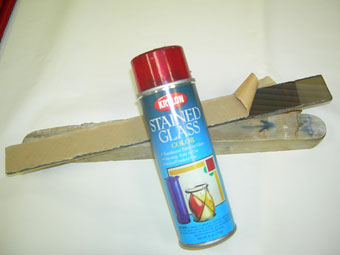

wooden plug   red Krylon stained-glass spray paint

custom taillights   custom LED tail light
